Universal H-Series Natural Gas Heater 200K BTU 120/240V

Product #:HAY-15-1010

Mfg. Part #:W3H200FDN

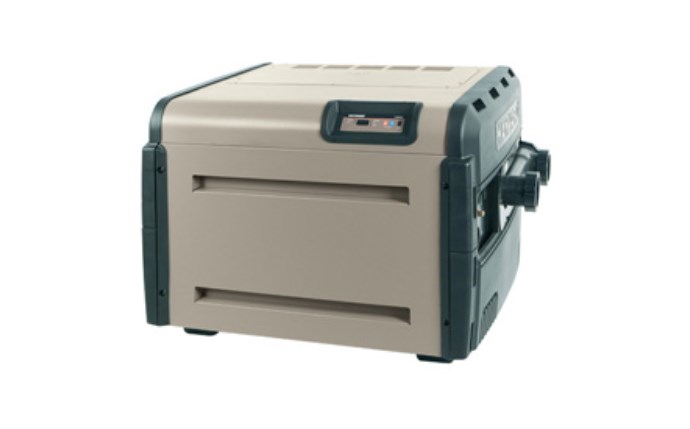

Hayward Universal H-Series W3H200FDN Natural Gas Heater 200K BTU 120/240V

Hayward

Universal H-Series Natural Gas Heater 200K BTU 120/240V

Product #:HAY-15-1010

Mfg. Part #:W3H200FDN

Description

Hayward Universal H-Series W3H200FDN Natural Gas Heater 200K BTU 120/240V is an energy efficient, high performance, installation adaptable commitment to the pool service professional.

Documents

Feature Bullets

  • Standard cupro nickel heat exchanger
  • Excellent salt water and chemical corrosion resistance
  • Exclusive "Totally Managed" cupro nickel heat exchanger water flow
  • Same water velocity through all tubes for faster heating
  • Patented header by-pass design
  • Up to 18 percent savings by reducing pump run-time
  • 2in x 2 1/2in CPVC union plumbing connections
  • Common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
  • Low NOx emissions - meets clean air quality standards

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool, Spa
    • Shipping Dimensions33.3 x 32.8 x 30.6 inch
    • BTU Output200000 British thermal unit
    • ChannelPool Equipment
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight161 pound
    • Flow Rate Min20 gal/min
    • Fuel TypeNatural Gas
    • Heat Exchanger MaterialCupro Nickel
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity3
    • Product Weight161 pound
    • Thermal Efficiency83
    • UPC Code0610377387217

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

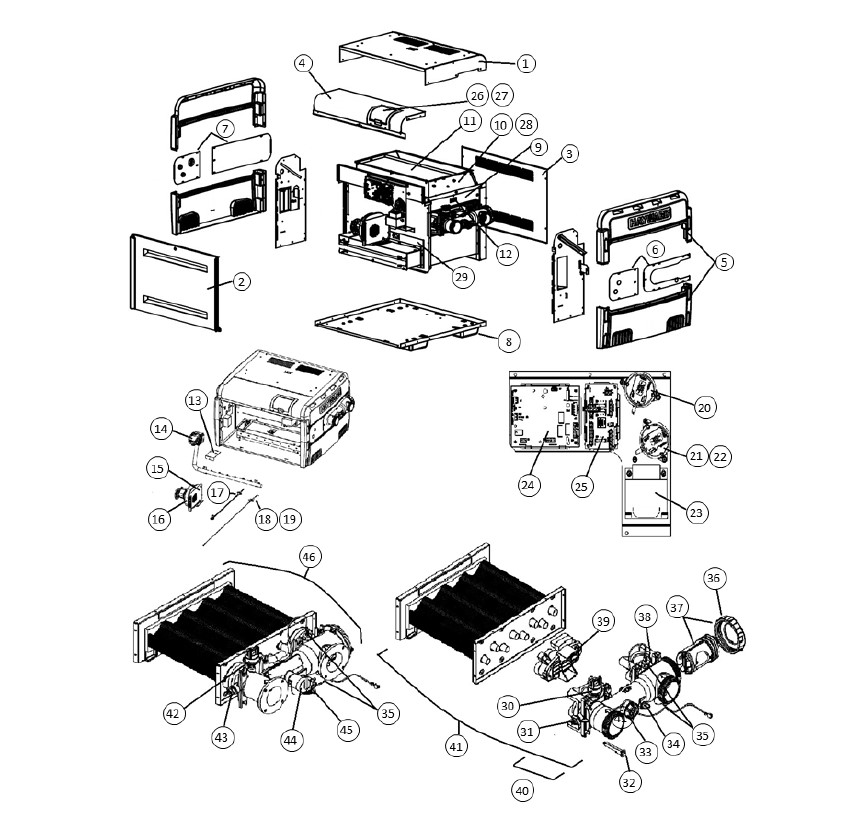

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    FDXLJKT1200
    HAY-151-3348
    Product #: HAY-151-3348
    Mfg #: FDXLJKT1200
    2
    2
    FDXLFAD1200
    HAY-151-3344
    Product #: HAY-151-3344
    Mfg #: FDXLFAD1200
    3
    3
    FDXLRAD1200
    HAY-151-3321
    Product #: HAY-151-3321
    Mfg #: FDXLRAD1200
    4
    4
    FDXLTFP1201
    HAY-151-3277
    Product #: HAY-151-3277
    Mfg #: FDXLTFP1201
    5
    5
    FDXLBEC1930
    BOTH END CAPS
    Product #:
    Mfg #: FDXLBEC1930
    6
    6
    FDXLHTP1931
    HEADER SIDE TRIM PANELS
    Product #:
    Mfg #: FDXLHTP1931
    7
    7
    FDXLRTP1931
    RETURN SIDE TRIM PANELS
    Product #:
    Mfg #: FDXLRTP1931
    8
    8
    FDXLPBL1930
    HAY-151-0042
    H-Series Base Leg Set of 4
    Product #: HAY-151-0042
    Mfg #: FDXLPBL1930
    9
    9
    FDXLFCS1931
    HAY-151-0087
    H Series Flue Collector Side Panel with High Limit
    Product #: HAY-151-0087
    Mfg #: FDXLFCS1931
    10
    10
    FDXLRGK1201
    HAY-151-3360
    Product #: HAY-151-3360
    Mfg #: FDXLRGK1201
    11
    11
    FDXLHBP1200
    HAY-151-3291
    Product #: HAY-151-3291
    Mfg #: FDXLHBP1200
    12
    12
    FDXLEGL1930
    HAY-151-1999
    Exhaust Gas Temperature Limit for H-Series Heaters
    Product #: HAY-151-1999
    Mfg #: FDXLEGL1930
    13
    13
    FDXLIAC1930
    HAY-151-0088
    Universal H-Series Ignitor Access Cover Kit
    Product #: HAY-151-0088
    Mfg #: FDXLIAC1930
    14
    14
    FDXLGCK2200NP
    CONVERSION KIT, NA TO LP, QUICK-CHANGE
    Product #:
    Mfg #: FDXLGCK2200NP
    14
    14
    FDXLGCK2200PN
    CONVERSION KIT, LP TO NA, QUICK -CHANGE
    Product #:
    Mfg #: FDXLGCK2200PN

    Wholegoods

    There are no wholegoods available.
