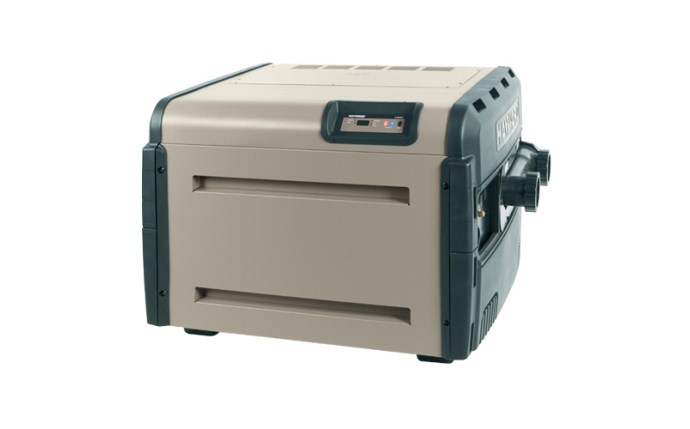

Universal H-Series Liquid Propane Heater 500K BTU 110/220V

Product #:HAY-15-743

Mfg. Part #:H500FDP


Hayward Universal H-Series H500FDP Digital Low NOx Pool Heater; Liquid Propane Gas, 500K BTU, 110/220V, 60Hz, 1 Phase, Cupro Nickel

Hayward

Universal H-Series Liquid Propane Heater 500K BTU 110/220V

Product #:HAY-15-743

Mfg. Part #:H500FDP

Description

Universal H-Series Low NOx heater has an industry-leading thermal efficiency and complies with all current California air quality emission standards. The low NOx emission makes it a perfect choice for the environmentally concerned pool owner.

Documents

Feature Bullets

  • Totally managed flow provides exceptional corrosion resistance and erosion protection. Ideal for today's salt-based electronic chlorination systems
  • Industry-leading hydraulic performance saves energy by reducing circulation pump run time
  • State-of-the-industry finn plate heat exchanger with special V-groove design for faster heating and longer life
  • Easy to install
  • High and low voltage connections are easy and convenient with left and right side junction boxes
  • Exclusive silicon nitride ignition system for dependable lighting and reliable operation
  • Electronic control display maintains water temperature, monitors heater performance with self-diagnostic capability
  • Unlike older forms of insulation, FireTile securely traps the heat, delivering the most performance from each BTU
  • Environmentally responsible

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool, Spa
    • Shipping Dimensions44.1 x 32.8 x 30.6 inch
    • BTU Output500000 British thermal unit
    • Cabinet Height24 inch
    • Cabinet Width41 inch
    • ChannelPool Equipment
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Control TypeDigital Electric, Dual Thermostat
    • Each Product Weight177 pound
    • Emissions RatingLow NOx Emissions
    • Frequency Rating (Hz)60
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Green or Energy Efficient ProductTrue
    • Header MaterialPolymer
    • Heat Exchanger MaterialCupro Nickel
    • Indoor Vent Pipe Diameter8 inch
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity3
    • PhaseSingle
    • Product Weight237 pound
    • Thermal Efficiency83
    • Voltage110V, 220V
    • UPC Code0610377274234

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

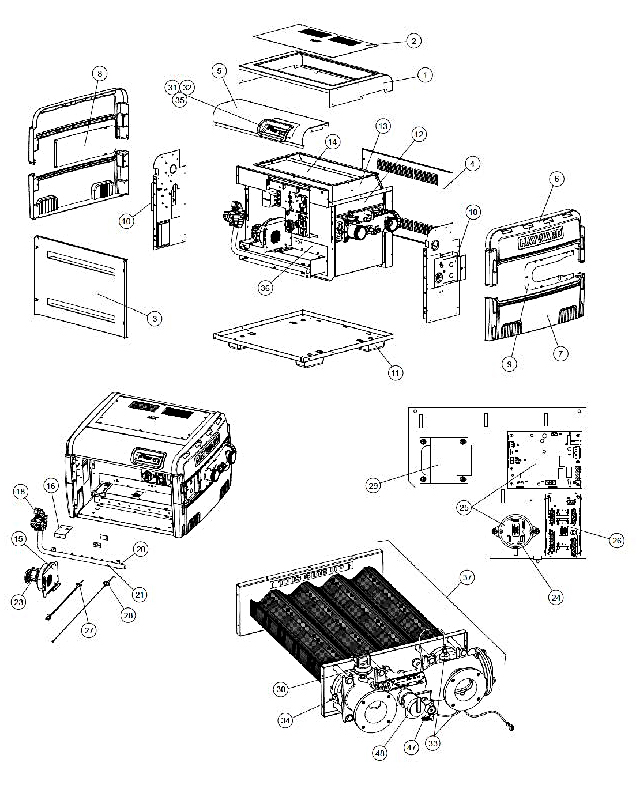

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    FDXLJKT1250A
    HAY-151-3353
    250K FD Series Gray Jacket Top and Flue Cover
    Product #: HAY-151-3353
    Mfg #: FDXLJKT1250A
    1
    1
    FDXLJKT1400A
    HAY-151-3374
    FDXLJKT1400A 400K FD SERIES GRY JACKET TOP & FLUE COVER
    Product #: HAY-151-3374
    Mfg #: FDXLJKT1400A
    2
    2
    FDXLTFC1250A
    HAY-151-0091
    FDXLTFC1250A 250K FD SERIES TOP/FLUE COVER
    Product #: HAY-151-0091
    Mfg #: FDXLTFC1250A
    2
    2
    FDXLTFC1400A
    HAY-151-3307
    FDXLTFC1400A 400K FD SERIES GRY TOP/FLUE COVER
    Product #: HAY-151-3307
    Mfg #: FDXLTFC1400A
    3
    3
    FDXLFAD1250A
    HAY-151-3349
    250K FD Series Gray Front Access Door Assembly
    Product #: HAY-151-3349
    Mfg #: FDXLFAD1250A
    3
    3
    FDXLFAD1400A
    HAY-151-3341
    FDXLFAD1400A 400K FD SERIES GRY FRONT ACCESS DOOR ASSY
    Product #: HAY-151-3341
    Mfg #: FDXLFAD1400A
    4
    4
    FDXLRAD1250A
    HAY-151-3327
    FDXLRAD1250A 250K FD SERIES GRY REAR ACCESS DOOR ASSY
    Product #: HAY-151-3327
    Mfg #: FDXLRAD1250A
    4
    4
    FDXLRAD1400A
    HAY-151-3333
    FDXLRAD1400A 400K FD SERIES GRY REAR ACCESS DOOR ASSY
    Product #: HAY-151-3333
    Mfg #: FDXLRAD1400A
    5
    5
    FDXLTFP1250A
    HAY-151-3281
    FDXLTFP1250A 250K FD SERIES GRY TOP & FRONT PANEL
    Product #: HAY-151-3281
    Mfg #: FDXLTFP1250A
    5
    5
    FDXLTFP1400A
    HAY-151-3301
    FDXLTFP1400A 400K FD SERIES TOP & FRONT PANEL
    Product #: HAY-151-3301
    Mfg #: FDXLTFP1400A
    6
    6
    FDXLUEC1930
    HAY-151-0049
    FDXLUEC1930 H-SERIES LOW NOX UPPER END CAP
    Product #: HAY-151-0049
    Mfg #: FDXLUEC1930
    7
    7
    FDXLLEC1930
    HAY-151-0039
    FDXLLEC1930 H-SERIES LOW NOX LOWER END CAP
    Product #: HAY-151-0039
    Mfg #: FDXLLEC1930
    8
    8
    FDXLLTP1930
    HAY-151-0041
    FDXLLTP1930 H-SERIES LOW NOX LEFT TRIM PANEL KIT
    Product #: HAY-151-0041
    Mfg #: FDXLLTP1930
    9
    9
    FDXLRTP1930
    HAY-151-0046
    H-Series Right Trim Panel Kit
    Product #: HAY-151-0046
    Mfg #: FDXLRTP1930
    10
    10
    FDXLLJB1930
    LEFT JUNCTION BOX
    Product #:
    Mfg #: FDXLLJB1930
