Lite2 Liquid Propane Pool and Spa Heater 325K BTU

Product #:LAR-15-756

Mfg. Part #:LJ325PX

  • This product is obsolete.
  • The superceded product was not found.

Jandy Lite2 LJ325PX LJ Pool and Spa Heater 325K BTU Liquid Propane, ASME, Digital

Jandy

Lite2 Liquid Propane Pool and Spa Heater 325K BTU

Product #:LAR-15-756

Mfg. Part #:LJ325PX

Description

Jandy Lite2 Heaters has over 50 years of experience as the #1 selling brand of pool heaters. There is a Jandy heater designed for every application. Reliability and performance year after year, season after season—whichever model you select is sure to provide.

Documents

Feature Bullets

  • The new LJ model features a liquid crystal digital display with programmable pump control, dual temperature controls, built-in freeze protection and heater diagnostics
  • The LJ & LD models have self-cleaning, hot surface ignition systems providing quick start-up every time
  • Ceramic fiber combustion chamber makes for lightweight, compact design.
  • Durable power coat finish provides years of performance.

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationOutdoor, Pool, Spa
    • BTU Input325000 British thermal unit
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight214 pound
    • Flow Rate Min113.6 l/min
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Gas Connection FITBSPT
    • Ignition TypeElectronic
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

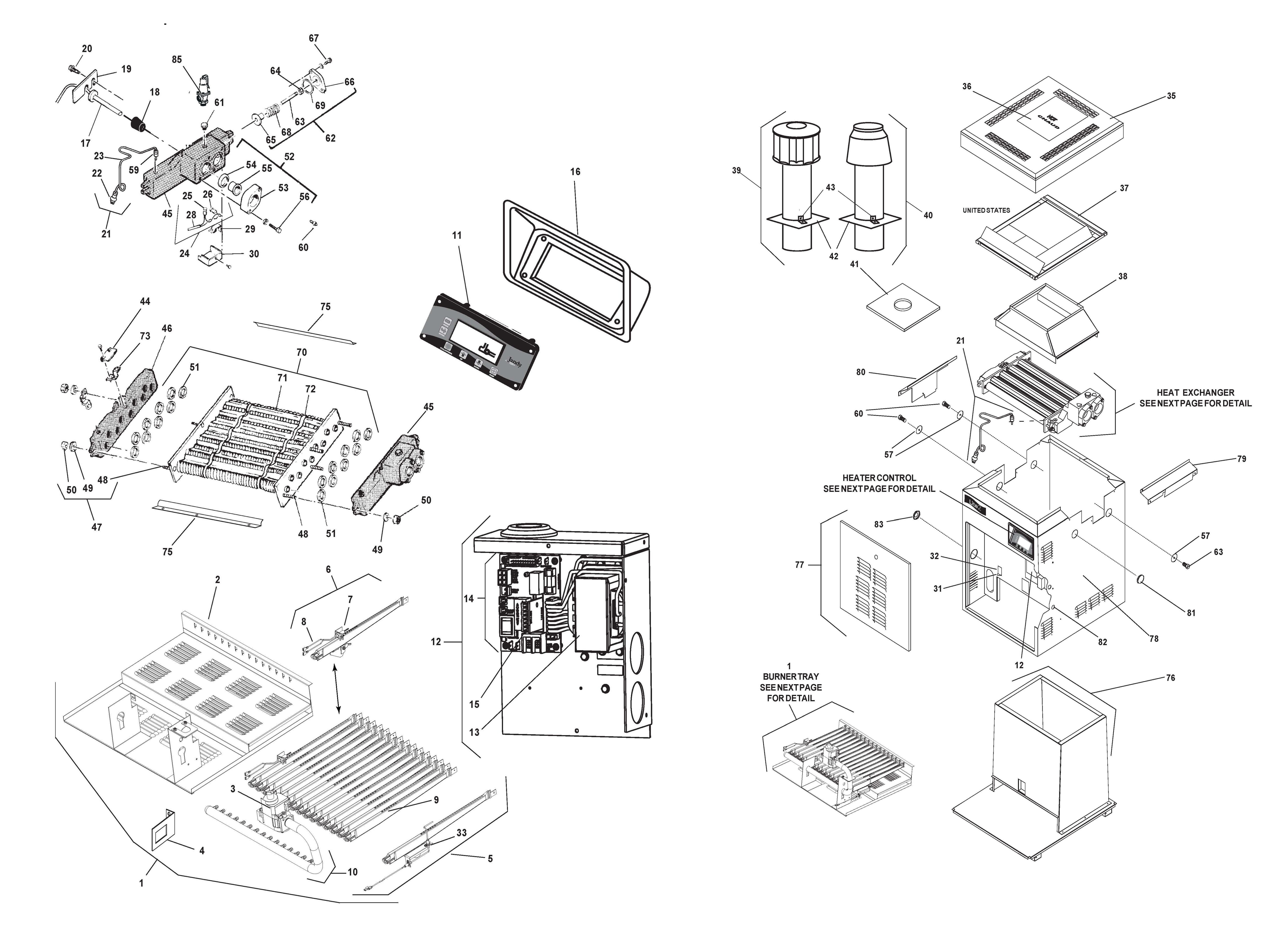

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0383601
    LAR-151-9567
    R0383601 125 LITE2 LJ NG BURNER TRAY ASSY
    Product #: LAR-151-9567
    Mfg #: R0383601
    Notes:
    Model No: 125-400
    1
    1
    R0383701
    LAR-151-1851
    Liquid Propane Burner Tray Assembly
    Product #: LAR-151-1851
    Mfg #: R0383701
    Notes:
    Model No: 125-400
    2
    2
    R0317001
    LAR-151-1526
    Burner Tray Shelf for Model 125 Lite2™ LD/LG/LJ Heaters
    Product #: LAR-151-1526
    Mfg #: R0317001
    Notes:
    Model No: 125-400
    3
    3
    R0317100
    LAR-151-1055
    Natural Gas Valve for Lite2™ LD/LJ Heaters
    Product #: LAR-151-1055
    Mfg #: R0317100
    3
    3
    R0319600
    LAR-151-5000
    Propane Gas Valve for Lite2™ LD/LJ Heaters
    Product #: LAR-151-5000
    Mfg #: R0319600
    4
    4
    10835900
    Anti-Rotation Bracket
    Product #:
    Mfg #: 10835900
    5
    5
    R0334300
    LAR-151-1047
    Flame Sensor Rod for Lite2™ LD/LJ Heaters
    Product #: LAR-151-1047
    Mfg #: R0334300
    6
    6
    R0450400
    LAR-151-1783
    LJ Burner Assembly with Igniter for Heaters
    Product #: LAR-151-1783
    Mfg #: R0450400
    7
    7
    R0367100
    LAR-151-3671
    Igniter for Lite2™ LJ Heater
    Product #: LAR-151-3671
    Mfg #: R0367100
    7
    7
    R0449800
    LAR-151-4498
    Igniter Box Assembly Replacement Kit for Lite2™ LJ Heater
    Product #: LAR-151-4498
    Mfg #: R0449800
    8
    8
    R0383300
    Igniter Fuse Assy (Set of 2)
    Product #:
    Mfg #: R0383300
    9
    9
    L0052300
    LAR-151-2588
    LAARS LITE/ ESG/ ESC Main Burner
    Product #: LAR-151-2588
    Mfg #: L0052300
    9
    9
    R0469800
    LAR-151-9707
    Main Burner for All Model LRZE/LRZM Pool/Spa Heaters
    Product #: LAR-151-9707
    Mfg #: R0469800
    10
    10
    R0405801
    Manifold Assy, Nat. Gas, 0-3K ft.
    Product #:
    Mfg #: R0405801
    Notes:
    Model No: 125-400
    10
    10
    R0405901
    Manifold Assy, Nat. Gas, 3-6K ft.
    Product #:
    Mfg #: R0405901
    Notes:
    Model No: 125-400

    Wholegoods

    There are no wholegoods available.
