H-Series Induced Draft Liquid Propane Heater 135K BTU

Product #:HAY-15-750

Mfg. Part #:H135IDP1

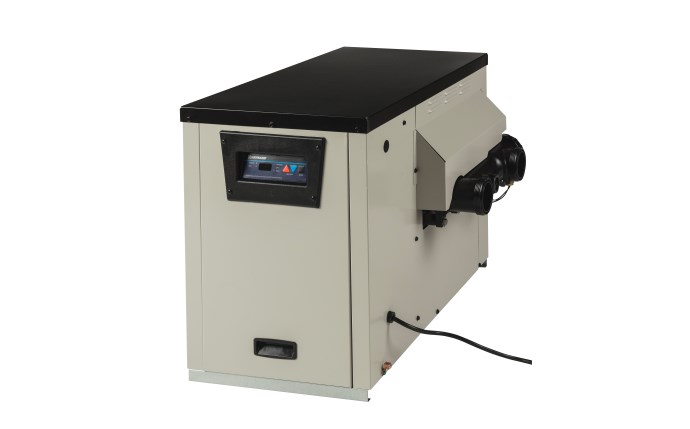

Hayward H-Series H135IDP1 Induced Draft Liquid Propane Gas Heater 135K BTU

Hayward

H-Series Induced Draft Liquid Propane Heater 135K BTU

Product #:HAY-15-750

Mfg. Part #:H135IDP1

Description

Hayward H-Series H135ID1 Induced Liquid Propane Gas Heater 135K BTU for above ground pools and spas combines leading technology with ease of operation and superior performance. Featuring an electronic, direct spark ignition system and an energy-efficient FireTile® line combustionchamber

Documents

Feature Bullets

  • Electronic, direct-spark ignition for total control and automatic operation
  • Convenient On/Off switch to maintain consistent temperature set point
  • Revolutionary induced draft technology
  • Reduced emissions design provides environment-friendly heating
  • FireTile combustion chamber ensures quick heating
  • Jet-ported stainless steel burners provide long life and easy maintenance
  • One-piece copper header/heat exchanger for leak-free performance
  • Cool-to-the-touch cabinet surface temoerature ensures worry-free use
  • 81% Thermal efficiency

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool, Spa
    • Shipping Dimensions37 x 25 x 27.3 inch
    • BTU Output135000 British thermal unit
    • ChannelPool Equipmenrt
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight117.5 pound
    • Emissions RatingLow NOx Emissions
    • FinishSatin
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Green or Energy Efficient ProductTrue
    • Heat Exchanger MaterialCupro Nickel
    • IncludesDigital Thermostat, 120V Power Cord
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity4
    • Product Weight117.5 pound
    • Thermal Efficiency85
    • CombustionFan-Assisted
    • UPC Code0610377360432

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

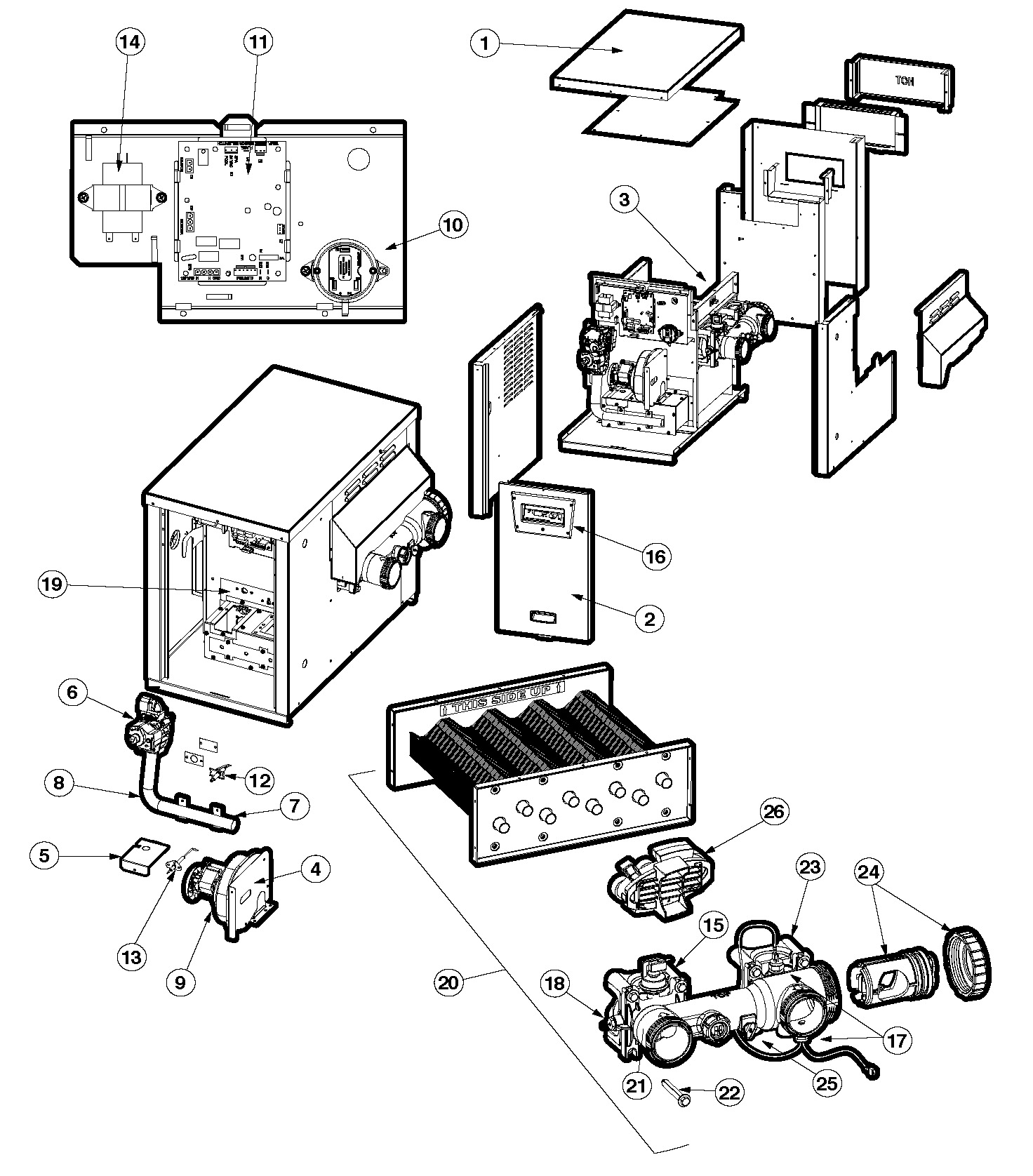

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    IDXLJKT1135
    Jacket Top
    Product #:
    Mfg #: IDXLJKT1135
    2
    2
    IDXLFAD1135P
    Front Access Door Assembly
    Product #:
    Mfg #: IDXLFAD1135P
    Notes:
    Platinum; No Controls
    3
    3
    FDXLFCS1931
    HAY-151-0087
    H Series Flue Collector Side Panel with High Limit
    Product #: HAY-151-0087
    Mfg #: FDXLFCS1931
    4
    4
    IDXLBBN1135
    Blower Inlet Baffle
    Product #:
    Mfg #: IDXLBBN1135
    5
    5
    FDXLIAC1930
    HAY-151-0088
    Universal H-Series Ignitor Access Cover Kit
    Product #: HAY-151-0088
    Mfg #: FDXLIAC1930
    6
    6
    FDXLGSV0001
    HAY-151-0032
    H-Series Natural Gas Valve Kit 150-400K
    Product #: HAY-151-0032
    Mfg #: FDXLGSV0001
    Notes:
    6
    6
    FDXLGSV0002
    HAY-151-0033
    FD Series Liquid Propane Gas Valve Kit
    Product #: HAY-151-0033
    Mfg #: FDXLGSV0002
    7
    7
    IDXLBON1135
    Burner Orifice Kit
    Product #:
    Mfg #: IDXLBON1135
    Notes:
    Natural
    7
    7
    IDXLBOP1135
    Burner Orifice Kit
    Product #:
    Mfg #: IDXLBOP1135
    Notes:
    Propane
    8
    8
    FDXLGCK1135NP
    Conversion Kit
    Product #:
    Mfg #: FDXLGCK1135NP
    Notes:
    NA to LP, Quick-Change
    8
    8
    FDXLGCK1135PN
    Conversion Kit
    Product #:
    Mfg #: FDXLGCK1135PN
    Notes:
    LP to NA, Quick-Change
    9
    9
    FDXLBWR1930
    HAY-151-0022
    H-Series Combustion Blower Kit
    Product #: HAY-151-0022
    Mfg #: FDXLBWR1930
    10
    10
    FDXLBVS1930
    HAY-151-0021
    FD Series Blower Vacuum Switch
    Product #: HAY-151-0021
    Mfg #: FDXLBVS1930
    11
    11
    FDXLICB1930
    HAY-151-6914
    FD Series Integrated Control Board
    Product #: HAY-151-6914
    Mfg #: FDXLICB1930
    12
    12
    FDXLIGN1930
    HAY-151-0037
    FD Series Ignitor
    Product #: HAY-151-0037
    Mfg #: FDXLIGN1930
