Brands
Lochinvar

EnergyRite® Liquid Propane Gas Heater 150K BTU 120/240V

Product #:LOC-15-424

Mfg. Part #:100143147

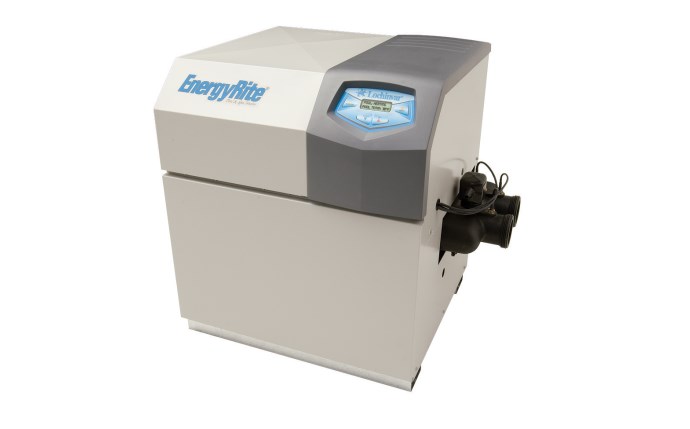

Lochinvar ERL-152 100143147 EnergyRite® Liquid Propane Gas Heater 150K BTU 120/240V

Lochinvar

EnergyRite® Liquid Propane Gas Heater 150K BTU 120/240V

Product #:LOC-15-424

Mfg. Part #:100143147

Description

Lochinvar ERL-152 100143147 EnergyRite® Liquid Propane Gas Heater 150K BTU 120/240V lets homeowners have it all: fast, reliable heating and dependable operation. Lochinvar’s time-proven commitment to advanced water heating technology is reflected in every detail and every component of EnergyRite. It’s a standard no other pool and spa heater can match!

Documents

Feature Bullets

  • Advanced heat exchanger design with no o-rings, virtually eliminates leaks and failures
  • Direct-spark ignition for superior reliability and efficiency
  • High-efficiency stainless steel burners
  • Adaptable for PVC pipe, using threaded or slip-fit connections
  • Fingertip setup, temperature adjustment and troubleshooting
  • Separate control capability for pool and spa
  • 2-line, 16-character display in words instead of confusing codes

    • Branch Availability

    content loaded

    Specifications

    • BrandLochinvar
    • ApplicationIndoor, Outdoor, Pool, Spa
    • Shipping Dimensions36 x 35 x 28 inch
    • BTU Input150000 British thermal unit
    • Cabinet Depth22 inch
    • Cabinet Height26.5 inch
    • Cabinet Width23 inch
    • ChannelPool Equipment
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Control TypeDigital
    • Each Product Weight183 pound
    • Flue Diameter6 inch
    • Frequency Rating (Hz)60
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Green or Energy Efficient ProductTrue
    • Header MaterialPolymer
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Tubing MaterialCopper
    • Voltage120V, 240V

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

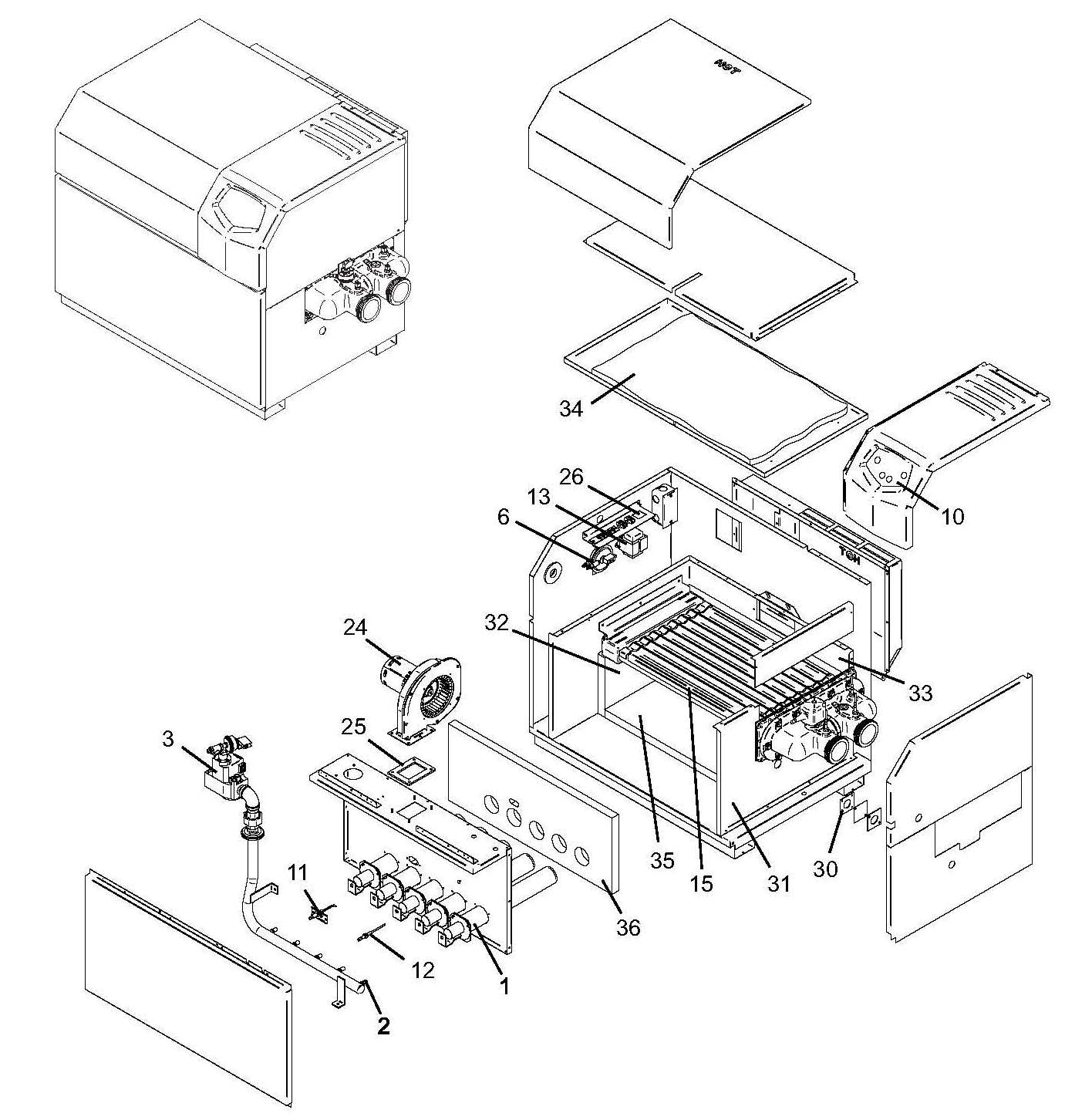

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    01
    01
    BNR3416
    Burner w/ Pressure Tap
    Product #:
    Mfg #: BNR3416
    01
    01
    BNR3417
    Main Burner
    Product #:
    Mfg #: BNR3417
    02
    02
    ORF2051
    Orifi ce LPG
    Product #:
    Mfg #: ORF2051
    02
    02
    ORF2406
    Orifi ce Natural
    Product #:
    Mfg #: ORF2406
    03
    03
    100172022
    LOC-151-1106
    Ignition/Natural Gas Valve For 152-402 EnergyRite® Pool Heater
    Product #: LOC-151-1106
    Mfg #: 100172022
    03
    03
    100172023
    LOC-151-1107
    100172023 152-402 IGNITION/ LP GAS VALVE
    Product #: LOC-151-1107
    Mfg #: 100172023
    05
    05
    100166256
    LOC-151-1003
    Water Pressure Switch For 152-402 EnergyRite® Pool Heater
    Product #: LOC-151-1003
    Mfg #: 100166256
    06
    06
    100166258
    LOC-151-1004
    Air Pressure Switch For 152-402 EnergyRite® Pool Heater
    Product #: LOC-151-1004
    Mfg #: 100166258
    07
    07
    100148403
    LOC-151-1200
    High Limit Temperature Switch for ALL ASME EnergyRite® Pool Heater
    Product #: LOC-151-1200
    Mfg #: 100148403
    07
    07
    TST2052
    LOC-151-1009
    High Limit Temperature Switch for ALL NON-ASME EnergyRite® Pool Heater
    Product #: LOC-151-1009
    Mfg #: TST2052
    08
    08
    TST2050
    LOC-151-1108
    Emersion Inlet Sensor For 152-402 EnergyRite® Pool Heater
    Product #: LOC-151-1108
    Mfg #: TST2050
    09
    09
    TST2054
    LOC-151-1109
    TST2054 152-402 EMERSION OUTLET SENSOR
    Product #: LOC-151-1109
    Mfg #: TST2054
    10
    10
    100071768
    LOC-151-1100
    100071768 RLY3090 152-402 INTEGRATED CONTROL
    Product #: LOC-151-1100
    Mfg #: 100071768
    11
    11
    100165932
    LOC-151-1110
    PLT3025 Ignitor Direct Spark for 152-402 EnergyRite® Pool Heater
    Product #: LOC-151-1110
    Mfg #: 100165932
    12
    12
    100165921
    LOC-151-1104
    Flame Sensor For 152-402 EnergyRite® Pool Heater
    Product #: LOC-151-1104
    Mfg #: 100165921
