Irritrol
.75" Threaded Bonnet 2700 Series Anti-Siphon Valve with Flow Control
Product #:IRR-58-1043
Mfg. Part #:2711APR

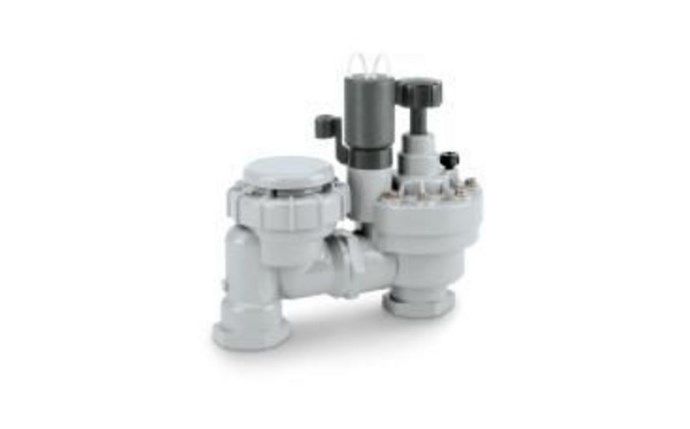

Irritrol 2711APR .75" Threaded Bonnet 2700 Series Anti-Siphon Valve with Flow Control
Irritrol
.75" Threaded Bonnet 2700 Series Anti-Siphon Valve with Flow Control
Product #:IRR-58-1043
Mfg. Part #:2711APR
Description
Irritrol 2711APR .75" Threaded Bonnet 2700 Series Anti-Siphon Valve with Flow Control offer optimum performance, reliability and ease-of-use for a wide variety of residential applications. Featuring anti-siphon capability, this family of plastic valves also features flow control for precise flow adjustment, manual shutoff and a built-in atmospheric vacuum breaker to eliminate back siphonage. Available in electric and manual models, these valves also feature a flow range from .25 to 30 GPM and a pressure range from 10 to150 psi.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandIrritrol
- ApplicationIrrigation
- Shipping Dimensions6.5 x 6.25 x 3.5 inch
- ChannelConstruction Channel
- ColorGray
- Each Product Weight1.1 pound
- Master Carton Quantity10
- Minimum Sell Quantity1
- Pallet Quantity350
- Flow Control IncludedTrue
- Valve ColorGray
- Valve Flow Max30 gal/min
- Valve Flow Min0.25 gal/min
- Valve TypeAnti-Syphon
- UPC Code090258044239
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

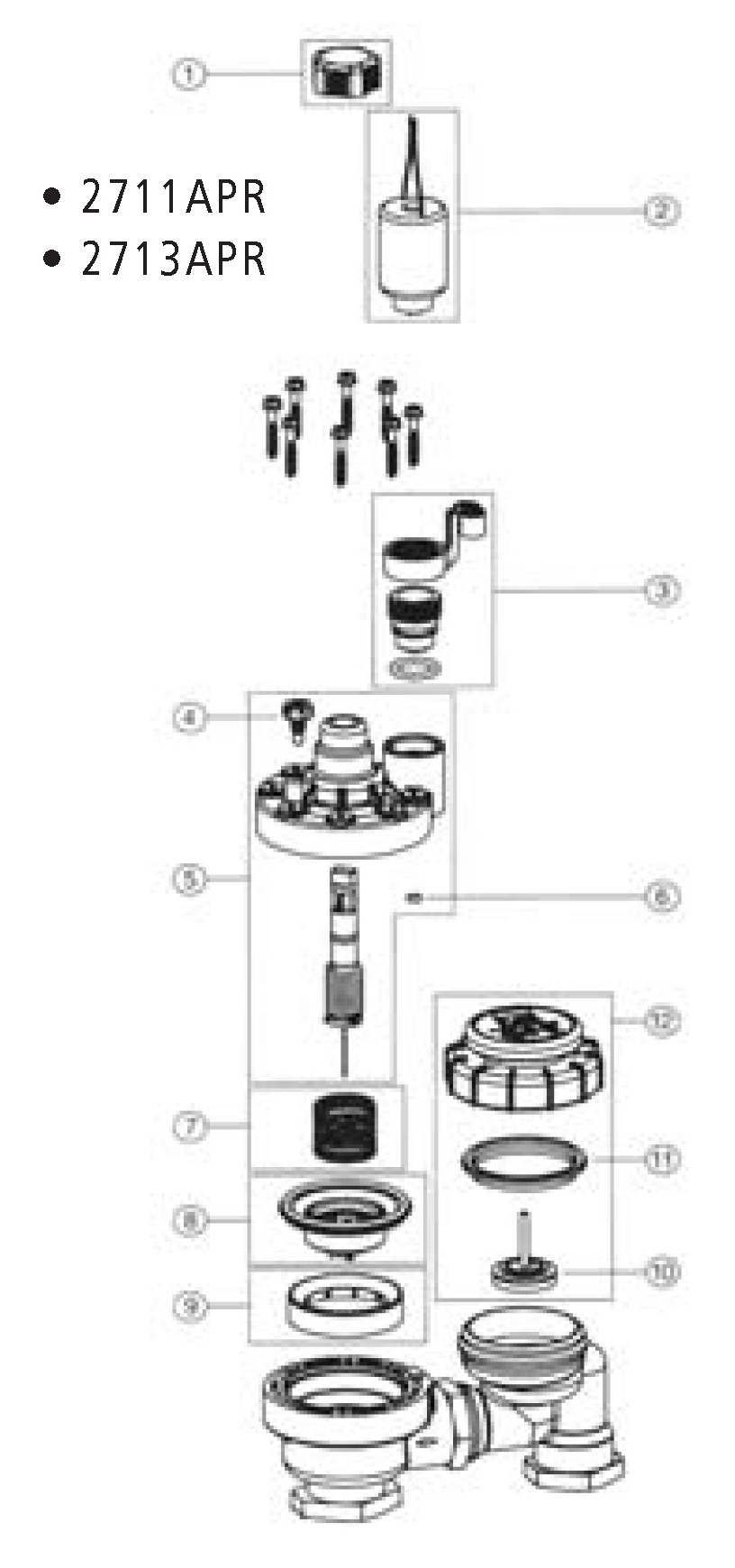

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
835603
Knob
Product #:
Mfg #: 835603
2
2
R811-24VACG
IRR-581-1079
Product #: IRR-581-1079
Mfg #: R811-24VACG
2
2
588403
Solenoid Assembly, 24 VAC, 50 Hz
Product #:
Mfg #: 588403
3
4
5
5
R1074601
Cover Assembly
Product #:
Mfg #: R1074601
6
6
121001
O-Ring
Product #:
Mfg #: 121001
7
7
R153201
Spring
Product #:
Mfg #: R153201
8
9
9
100237-H
Divider
Product #:
Mfg #: 100237-H
10
10
11
11
100241
O-Ring (Anti-siphon) 2711APR
Product #:
Mfg #: 100241
11
12
