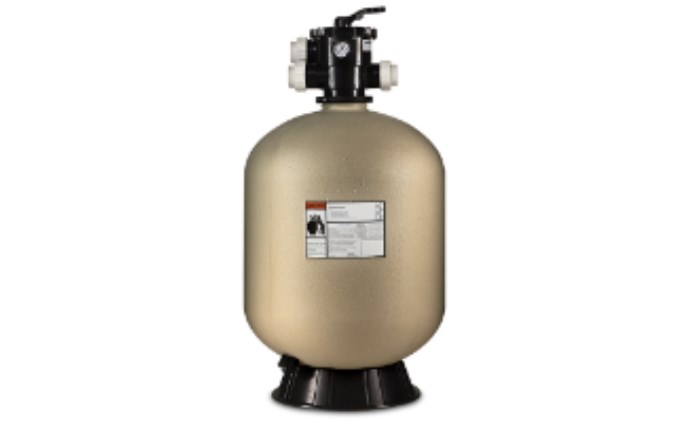

Pentair Sand Dollar® EC-145322 Top Mount Sand Filter 22.5" Ecommerce, 1.5" MPV
Description
The one-piece Sand Dollar® Top Mount Sand Filter features a clamp style, six-position multiport valve. Special lateral design provides superior flow characteristics and long filter cycles for economical operation.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationPool
- Shipping Dimensions23 x 23 x 42 inch
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight44 pound
- Filtration Area2.3 square feet
- MaterialThermoplastic
- Maximum Flow Rate60 gal/min
- Maximum Working Pressure40 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity8
- Product Height43.75 inch
- Product Width22.5 inch
- Sand Required250 pound
- Tank MaterialThermoplastic
- Turnover 10hrs36000 gallon
- Turnover 12hrs43200 gallon
- Turnover 8hrs28800 gallon
- Vertical Clearance50.5 inch
- UPC Code788379500443
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

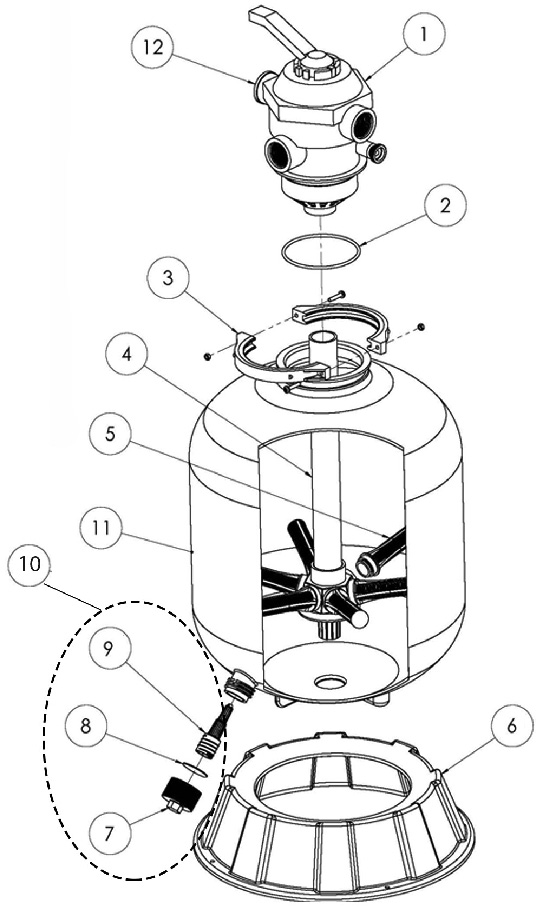

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
262506
PAC-06-248
Product #: PAC-06-248
Mfg #: 262506
1
1
263085
PAC-061-2001
Product #: PAC-061-2001
Mfg #: 263085
1
1
262525
PAC-06-2625
Product #: PAC-06-2625
Mfg #: 262525
2
3
3
152165
PAC-051-1644
Product #: PAC-051-1644
Mfg #: 152165
Notes:
2 piece4
4
4
152227
PAC-051-9301
Product #: PAC-051-9301
Mfg #: 152227
Notes:
Filters manufactured after 10/045
5
152290Z
PAC-051-2805
Product #: PAC-051-2805
Mfg #: 152290Z
Notes:
8 Required5
5
150085Z
Lateral Xlong
Product #:
Mfg #: 150085Z
Notes:
Black; Filters manufactured after 10/046
6
154520Z
PAC-051-2729
Product #: PAC-051-2729
Mfg #: 154520Z
Notes:
Used on filters manufactured before 2/027
7
7
8
8
Wholegoods
There are no wholegoods available.
