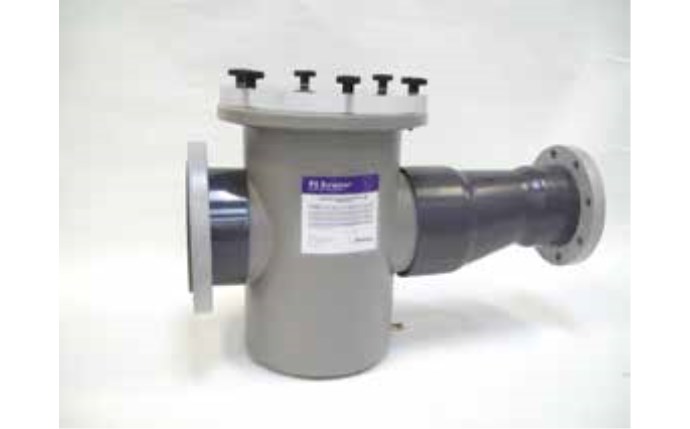

10" x 8" PS Series™ In-Line Strainer

Product #:PAC-101-9501

Mfg. Part #:PS10X8E


Pentair PS10X8E PS Series™ PS10 In-Line Strainer for Commercial Series Pumps Connection Size 10" ANSI x 8" ANSI

Pentair

10" x 8" PS Series™ In-Line Strainer

Product #:PAC-101-9501

Mfg. Part #:PS10X8E

Description

PS Series strainers from Pentair Commercial Aquatics™ are designed for ease of installation and hydraulic efficiencies in commercial aquatics applications. In three standard sizes and with the addition of eccentric reducers, PS Series strainers fit with almost any plumbing configuration. The design of the PS Series strainers accommodates the high-flow performance in a variety of applications. ANSI Rated flange bolt pattern allows for ease of installation and peace of mind.

Documents

Feature Bullets

  • Superior design for hydraulic performance.
  • Clear lid with easy access allows for simple visibility of debris.
  • Extra-large stainless steel strainer basket.
  • 50 psi rating.
  • NSF listed.
  • The strainer shall consist of a nonmetallic fiberglass-reinforced plastic body, a clear cover that extends over the entire top, an O-ring seal, manually capable (no tools required) stainless steel per plastic screw fasteners, and a stainless steel basket.
  • The strainer body shall be able to be fitted with PVC plastic piping connections. These connections shall be capable of accommodating Van Stone Flanges, concentric reducers, and non-concentric reducers. The strainer shall have a removable drain for winterizing and a pressure relief valve set at 50 psi.
  • The strainer pipe sizes and basket characteristics shall meet and be listed to NSF per ANSI Rated Standard 50.

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • Each Product Weight1 pound
    • Shipping Dimensions10 x 10 x 8 inch
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Basket MaterialStainless Steel
    • Cover MaterialAcrylic
    • Frame MaterialFiberglass
    • Max Liquid Temperature125 degrees Fahrenheit
    • Max Working Pressure50 pounds per square inch
    • UPC Code788379500559

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

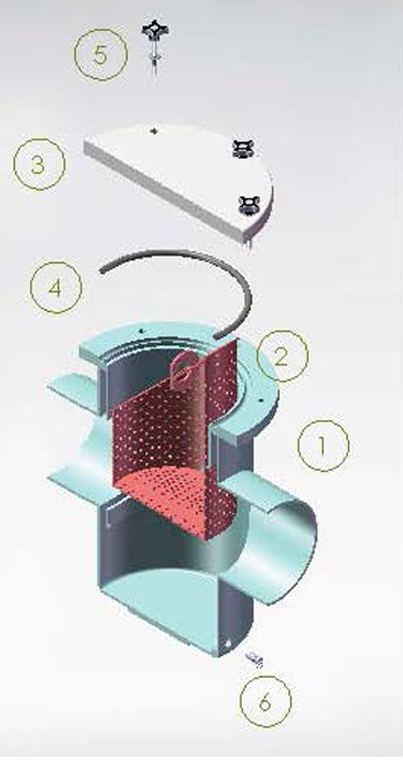

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    PS10X10BODY
    Body
    Product #:
    Mfg #: PS10X10BODY
    2
    2
    67152
    KDI-101-1006
    Strainer Basket for PS10 In-Line Strainer
    Product #: KDI-101-1006
    Mfg #: 67152
    3
    3
    67101
    KDI-101-1004
    Clear Cover for Strainer with Holes
    Product #: KDI-101-1004
    Mfg #: 67101
    4
    4
    67250
    KDI-101-1000
    O-Ring for 50 Durometer EPDM Strainer Lid
    Product #: KDI-101-1000
    Mfg #: 67250
    5
    5
    23325
    KDI-101-1003
    Knob with 3/8" Threaded Stud for Pump Strainer
    Product #: KDI-101-1003
    Mfg #: 23325
    6
    6
    67350
    KDI-101-1002
    Pressure Relief Valve for PS Series In-Line Strainer
    Product #: KDI-101-1002
    Mfg #: 67350
