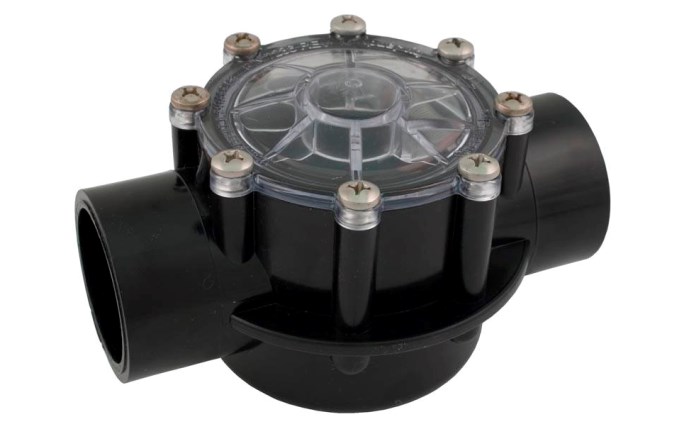

Jandy Pro Series 7235 1 1/2"-2" 180 Degree Check Valve
Description
Jandy Pro Series 7235 1 1/2"-2" 180 Degree Check Valve features a clear lid and red seal plate for easy inspection, as well as a unique swing/spring design. It's made of the toughest CPVC material and can easily be disassembled for clearing debris. It is available in straight-through or 90° models and 2" x 2.5" or 1.5" x 2" sizes. The large 2.5" x 3" dimension is designed to easily connect with the Jandy Pro 3HP Stealth Pump. It can handle flow rates up to 170 gallons per minute with minimal head loss, making it great for spas and water features that require high flow rates.
Documents
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationPool
- Shipping Dimensions6.4 x 4.4 x 4.1 inch
- Each Product Weight1.2 pound
- Master Carton Quantity12
- MaterialCPVC
- Minimum Sell Quantity1
- Pallet Quantity144
- Valve ColorBlack
- UPC Code052337002967
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

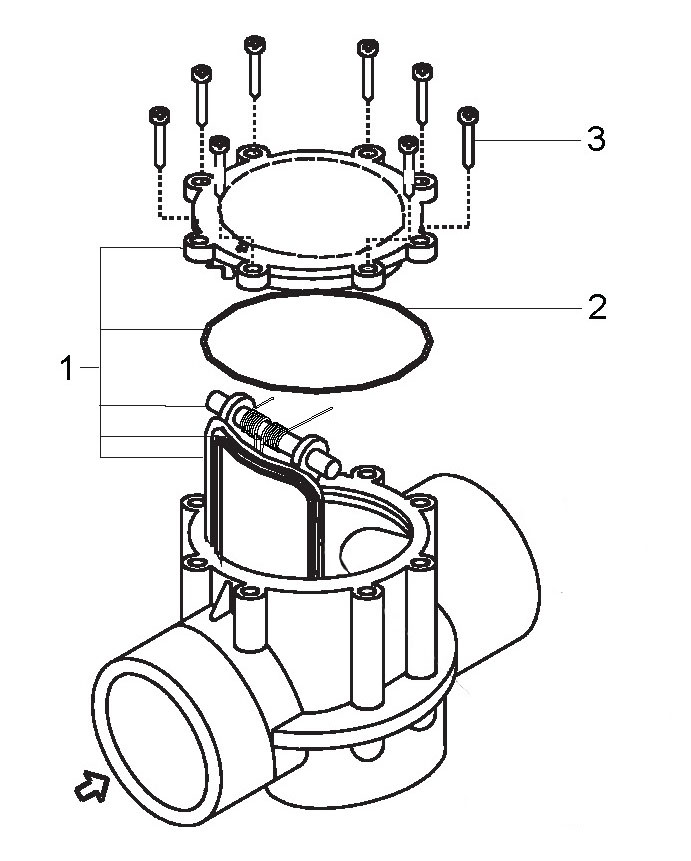

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
1
1
25830-704-800
CTM-56-0705
Product #: CTM-56-0705
Mfg #: 25830-704-800
1
2
2
2
2
O-636-9
SPG-601-5908
Product #: SPG-601-5908
Mfg #: O-636-9
2
3
3
R0457600
Screw Kit, #14 x 3/4" Valve Housing
Product #:
Mfg #: R0457600
Notes:
8 QuantityWholegoods
