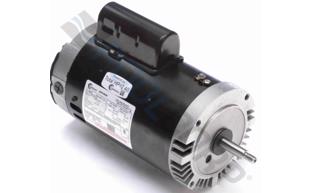

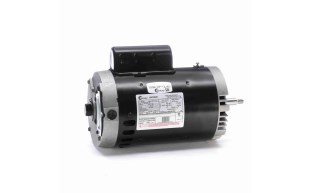

Century® B836 ODP Threaded Pool & Spa Pump Motor 2HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, Y56J Frame, DP
Description
The ODP Threaded Pool & Spa Pump Motor is switchless and energy efficient. Century® is an established and respected motor brand with reliable and dependable products for HVAC, pool & spa, and commercial and industrial applications. For nearly 80 years, the Century brand has delivered cutting-edge, high-quality, and energy-efficient solutions to customers all over the world. Century brings cutting edge, high quality and energy efficient solutions to customers all over the world. For your most relaxing applications, Century® pool pump motors have you covered to ensure your summer and leisure activities stay up and running.
Branch Availability
content loaded
Specifications
- BrandCentury
- ApplicationAbove Ground, Pool, Spa
- Shipping Dimensions19.38 x 9.5 x 11 inch
- ColorBlack
- Frequency Rating (Hz)60
- Horsepower2 horse power
- Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage115V, 230V
- Ambient Temperature50 degrees Celsius
- Amps High Speed21.6
- Amps Low Speed10.8
- Bearing TypeBall
- ChannelNone
- Diameter6.5 inch
- Duty CycleContinuous
- Each Product Weight37 pound
- Efficiency GroupStandard
- Flange MaterialAluminum
- Frame MaterialRolled Steel
- Insulation ClassB
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor RatingFull-Rated
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.2
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- UPC Code663001194569
