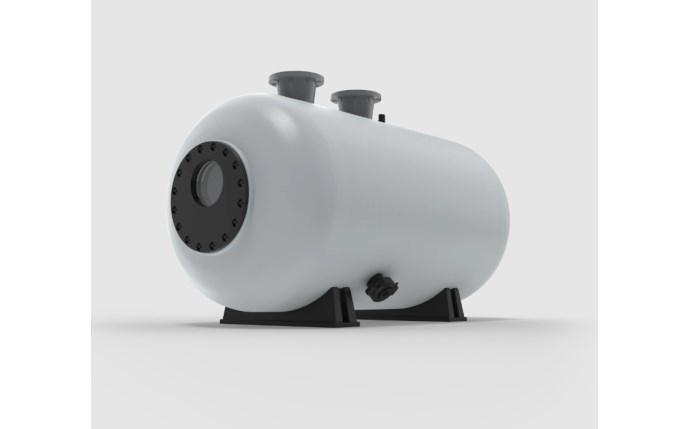

Jandy® SFHT4284 84" SFHT Commercial Series Horizontal Sand Filter 23 SqFt
Description
Jandy® commercial horizontal sand filters provide superior filtration for enhanced water clarity in high-demand, commercial pool applications.
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationPool, Spa
- Shipping Dimensions96 x 60 x 66 inch
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight1200 pound
- Filtration Area23 square feet
- IncludesFilter tank, air vent valve, tank feet, tank drain
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Sand Required3100 pound
- Tank Diameter42.438 inch
- Backwash Min Flow Rate115 gal/min
- ColorGray
- FinishStandard
- MaterialFiberglass
- Maximum Flow Rate460 gal/min
- Sand Type Requirements20 silica sand or Zeolite
- Side Clearance96.313 inch
- Standards ApprovalsNSF Certified, ANSI Certified
- Tank ColorGray
- Turnover 6hrs165.6 gallon
- Vertical Clearance51 inch
- UPC Code052337291989
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R1016200
TLD-051-1943
Product #: TLD-051-1943
Mfg #: R1016200
Notes:
Access Hatch2
3
4
4
R1016500
TLD-051-1946
Product #: TLD-051-1946
Mfg #: R1016500
Notes:
External Air Vent5
5
R1016600
TLD-051-1947
Product #: TLD-051-1947
Mfg #: R1016600
Notes:
Media Drain6
6
R1016700
TLD-051-1948
Product #: TLD-051-1948
Mfg #: R1016700
Notes:
Pressure Gauge Panel Assembly7
7
R1016800
TLD-051-1949
Product #: TLD-051-1949
Mfg #: R1016800
Notes:
Pressure Gauge Panel Assembly8
8
R1016900
TLD-051-1950
Product #: TLD-051-1950
Mfg #: R1016900
Notes:
Pressure Gauge Panel AssemblyNot Shown
Not Shown
R1017100
TLD-051-1952
Product #: TLD-051-1952
Mfg #: R1017100
Not Shown
Not Shown
R1017600
TLD-051-1957
Product #: TLD-051-1957
Mfg #: R1017600
Not Shown
Not Shown
R1018100
TLD-051-1962
Product #: TLD-051-1962
Mfg #: R1018100
Not Shown
Not Shown
R1018600
TLD-051-1967
Product #: TLD-051-1967
Mfg #: R1018600
Not Shown
