ELM

Flat Plate Solar Collector 4' x 12'

Product #:ELM-15-1117

Mfg. Part #:2-1400-048

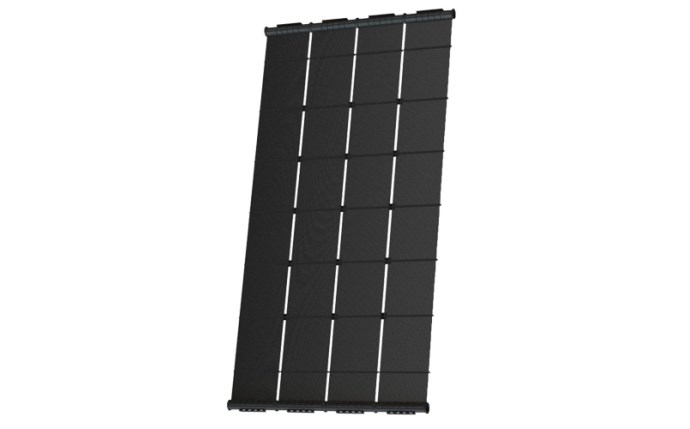

ELM 2-1400-048 Flat Plate Solar Collector 4' x 12'

ELM

Flat Plate Solar Collector 4' x 12'

Product #:ELM-15-1117

Mfg. Part #:2-1400-048

Description

ELM 2-1400-048 Flat Plate Solar Collector 4' x 12' have been designed from nearly fourty years of experience in manufacturing of solar heating equipment. They have undergone extensive testing resulting in performance certifi cation by accredited independent laboratories and approval agencies. Performance rated at 1,100 BTU’s per square foot by the Florida Solar Energy Center.

Documents

No documents available

Feature Bullets

  • Absorber Plate - propylene copolymer with synergistic antioxidants and uv screen including carbon black
  • Glass reinforced polypropylene mounting brackets
  • High tensile woven polyester holding-down straps
  • Dual-durometer EPDM connecting hoses
  • Type 302/304 all stainless steel clamps
  • 0.05 at 2.5 gpm, 0.20 at 5.0 gpm and 0.60 at 10.0 gpm pressure drop
  • 50 psi at 77 deg F recommended maximum operating pressure
  • 75 psi at 77 deg F and 35 psi at 140deg F maximum operating pressure
  • Greater than 100 psi at 140 deg F design burst pressure
  • Branch Availability

    content loaded

    Specifications

    • BrandELM
    • ApplicationPool, Spa
    • Shipping Dimensions143.7 x 47.24 x 2.44 inch
    • Each Product Weight16.53 pound
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity16
