A.Y. McDonald

2" Brass 76101 Ball Curb FNPT x FNPT - NL

Product #:AYM-56-1053

Mfg. Part #:5129-119

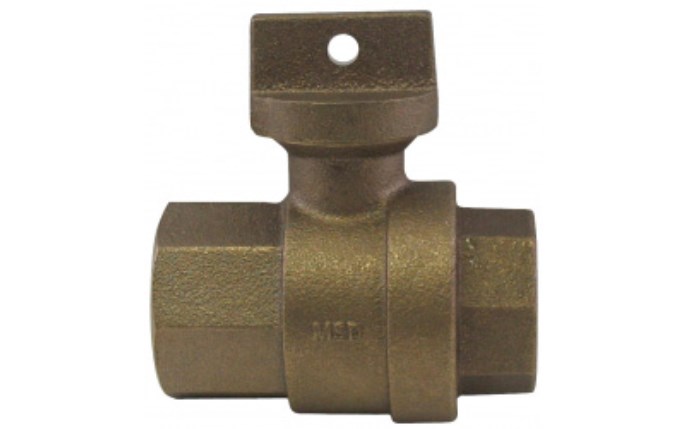

A.Y. McDonald Manufacturing, 5129-119, 2" Brass 76101 Ball Curb FNPT x FNPT - NL

A.Y. McDonald

2" Brass 76101 Ball Curb FNPT x FNPT - NL

Product #:AYM-56-1053

Mfg. Part #:5129-119

Description

A.Y. McDonald Ball Curb Stops maintain a low turning torque and bubble-tight 300 PSIG water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. McDonald Ball Curb Stops offer positive shut-off from either direction and are available with a wide variety of end connections.

Documents

Feature Bullets

  • Eliminates a joint when replacing an existing curb stop connection when additional length is required
  • Used wherever a longer lay length shut off valve is required
  • “Blow out proof” EPDM port seals
  • 90° turn operating head
  • Carton Weight: 19.35 pounds
  • Manufactured in compliance with ANSI/AWWA C800 (latest revision)
  • Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with “NL”
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
  • Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNSC83600 -85-5-5-5 (latest revision)
  • PTFE coated brass ball
  • Rated for 300 PSI water pressure

    • Branch Availability

    content loaded

    Specifications

    • BrandA.Y. McDonald
    • ApplicationPool, Spa, Irrigation
    • Shipping Dimensions6 x 5.5 x 4.25 inch
    • ChannelConstruction Channel
    • ColorBrown, Brass, Bronze
    • Commercial, Residential, or ProfessionalCommercial, Professional
    • Each Product Weight6.4 pound
    • FinishStandard
    • Master Carton Quantity3
    • MaterialBrass
    • Minimum Sell Quantity1
    • Pressure Rating300 pounds per square inch
    • Standards ApprovalsNSF Certified, ANSI Certified
    • Valve ColorBronze
    • Valve Connection ConfigurationFNPT x FNTP
    • UPC Code053565347912

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
